UV 588

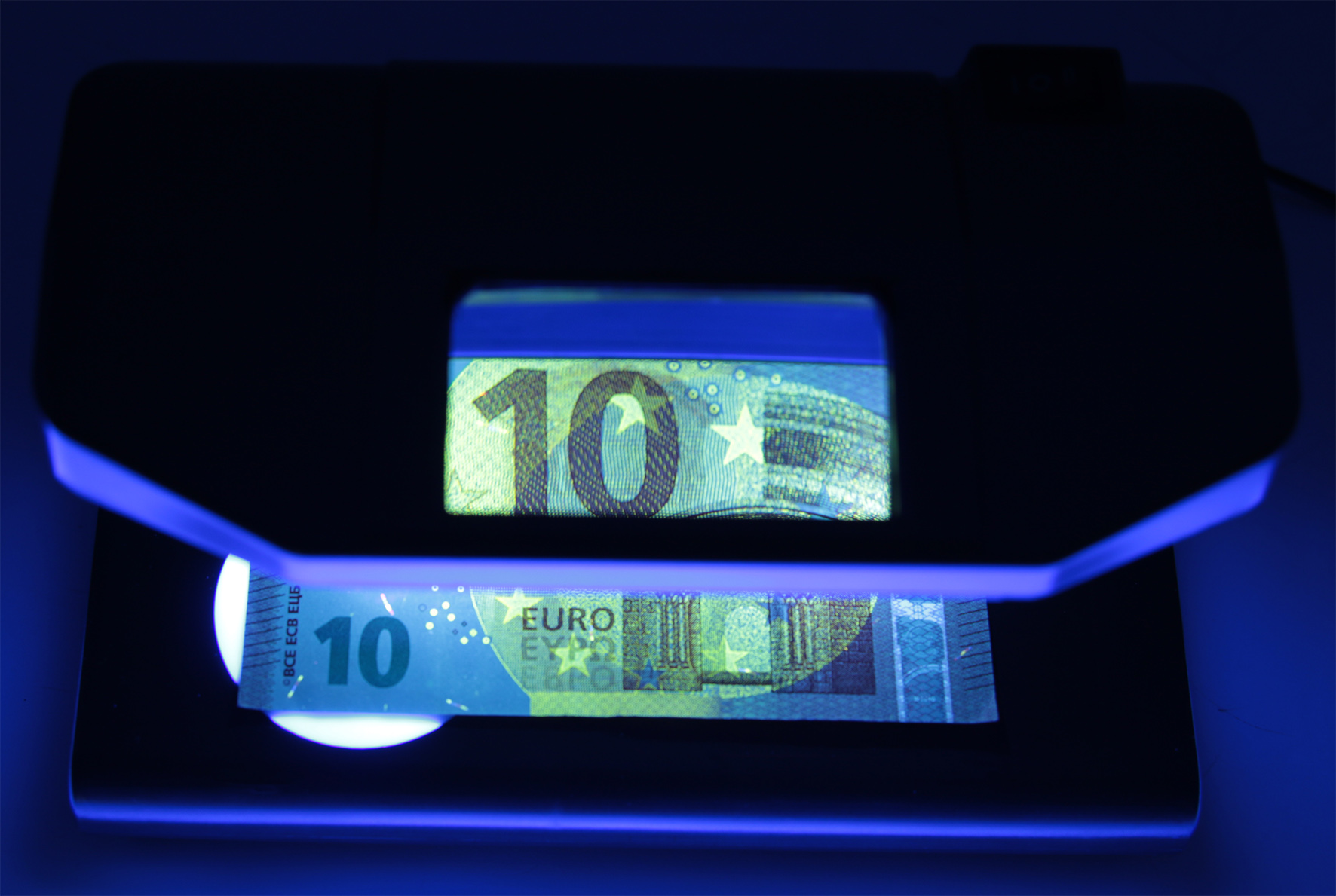

  • UV Lamp for counterfeit detection of notes
  • with magnetic sensor to verify the magnetic ink and white light to check the watermark
  • Magnifier for micro script
  • Visual investigation of the notes
  • UV lamp with 2x 3W UV LED
  • Creates ultra violet light, 365 nm

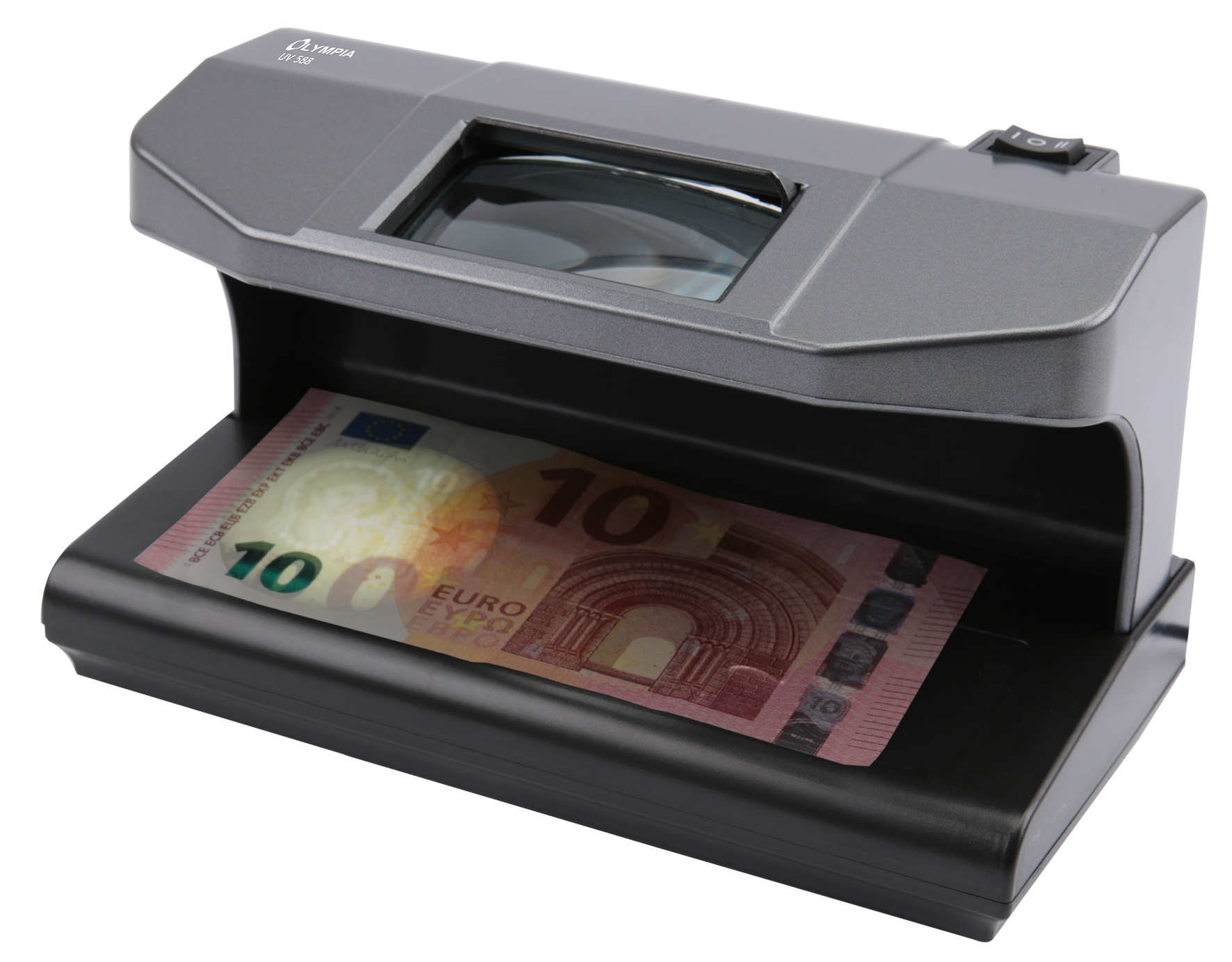

  • Lamp for white backlight, LED SMD to investigate the watermark
  • Magnetic sensor to analyse the magnetic ink
  • indicates magnetism with red LED and sound
  • Optical magnifier
  • Power supply: via USB cable, included, 5Volt, 1000mA, USB-Power Adapter not included
  • alternative: Li-Ion battery, for portable use, battery not included,
  • recommended: Model 18650, 26000 mAh
  • Environment: Temperature range 0-40°C, max. 90% Humidity
Color Item Num. Size WxDxH Weight EAN
947731088 187 x 100 x 110 mm 0,46 kg 4030152950942

Product + package (PP)

Size PP WxDxH Weight PP
240 x 110 x 121 mm 0,61 kg

Package unit (PU)

PU Size PU WxDxH Weight PU
10 581 x 257 x 266 mm 6,83 kg

Delivery contents

UV 588, USB-cable, Manual
